Seed & Sett Preparation
STDBS
Sugarcane Sett Treatment Device
STDBS combines controlled heat, high humidity and negative pressure to help treatment solution reach sugarcane sett tissue. It is designed for setts, single buds and bud chips.
BhooSarthi
How it is built
Features that support the operation.
- Negative-pressure vacuum treatment mechanism
- Thermostatically controlled heating system
- Stainless-steel airtight chamber and tray
- Vacuum and pressure meter
- Two-stage vacuum pump
- Electronic operation on standard power supply
In the field
Practical advantages.
- 01
Supports uniform application of treatment solution
- 02
Helps manage sett-borne disease and pest risk
- 03
Improves on long-duration conventional soaking
- 04
Reusable treatment solution for same-day batches

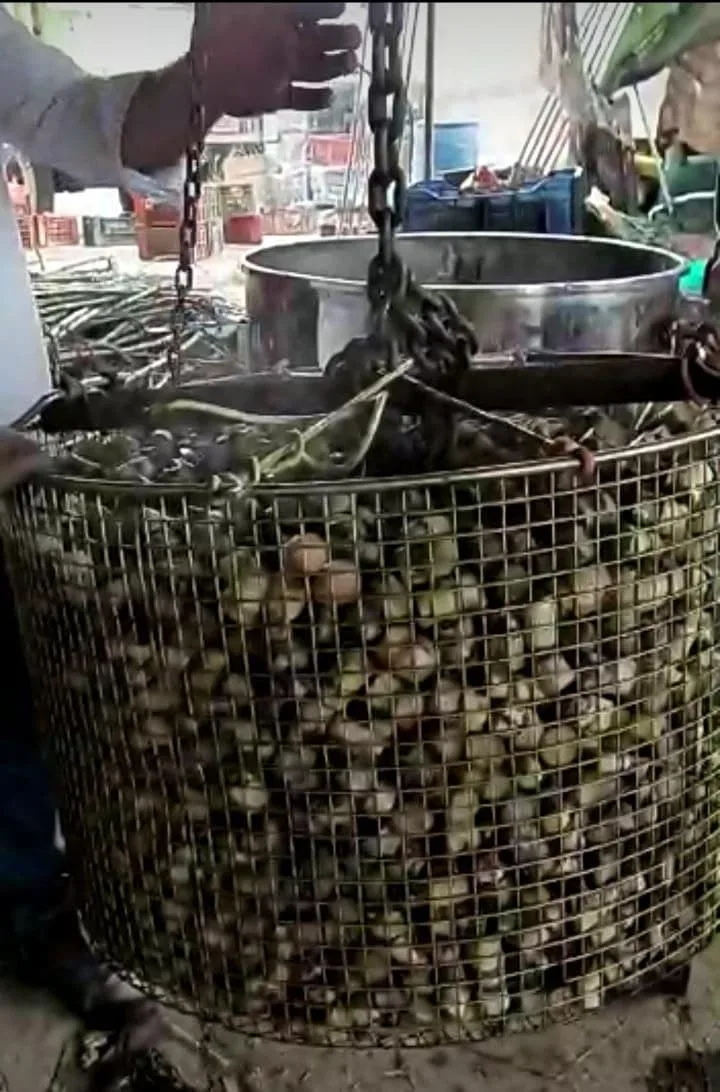

Product views
See the machine from every side.
Images are from BhooSarthi’s supplied product and field library.
Technical data
STDBS specifications
Specifications are based on the product information supplied for this model. Configuration may vary with crop and field requirements.
Discuss your configuration| Capacity | 160 L / up to 500 single buds |
|---|---|
| Treatment temperature | 54 ±0.5°C |
| Typical cycle | 45 minutes including heating |
| Pump | Two-stage VP245, 1/3 HP |
| Heating rod | 2000 W |
| Required voltage | 220 V, 50/60 Hz |
| Material | Stainless steel |
| Approx. weight | 225 kg |
