Seed & Sett Preparation
SBCBS04
Quatro Semi-Automatic Bud Cutter
The Quatro allows up to four operators to cut uniform sugarcane buds simultaneously. Its trolley format, worm reduction gearbox and 1 HP motor are designed for productive nursery seed preparation.
BhooSarthi
How it is built
Features that support the operation.
- Four-way simultaneous cutting
- Heavy-duty worm reduction gearbox
- Eight stainless-steel cutting blades
- Easy blade replacement
- Portable trolley with small wheels
- Single-phase motor drive
In the field
Practical advantages.
- 01
Up to four operators can work simultaneously
- 02
Uniform bud size for consistent nursery preparation
- 03
Designed to save up to 65% labour versus manual cutting
- 04
Easy to move between work areas

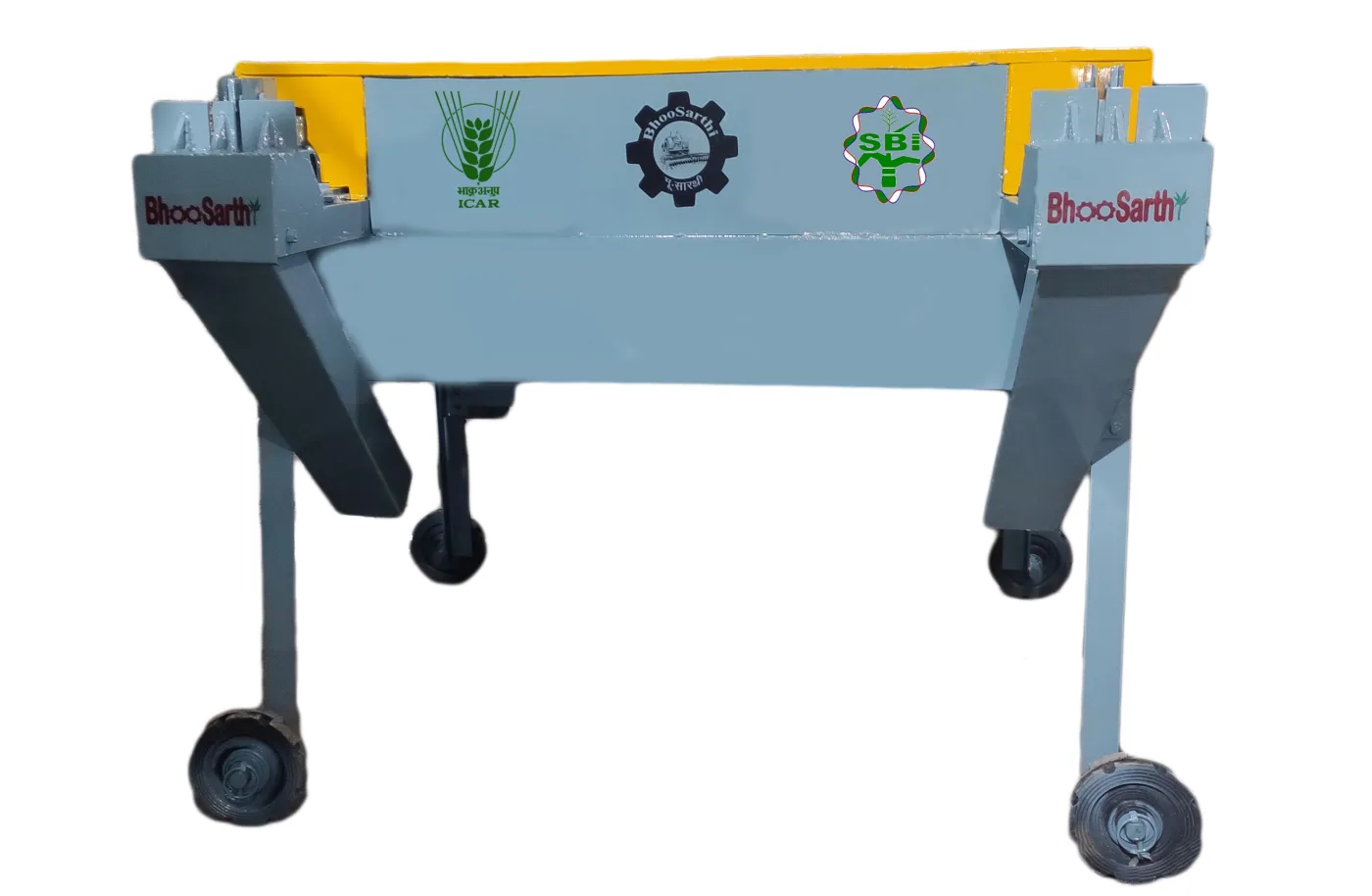

Product views
See the machine from every side.
Images are from BhooSarthi’s supplied product and field library.
Technical data
SBCBS04 specifications
Specifications are based on the product information supplied for this model. Configuration may vary with crop and field requirements.
Discuss your configuration| Cutting points | 4 |
|---|---|
| Cutting capacity | Up to 11,200 buds/hour |

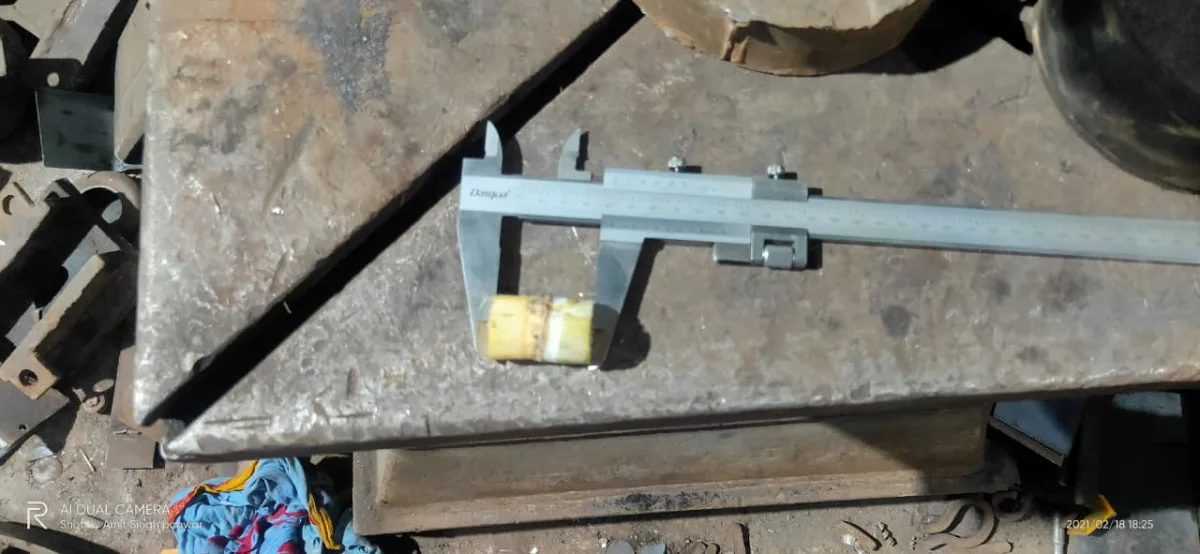

| Bud size | 32 mm |
| Motor | 1 HP, single phase |
| Motor speed | 1340 RPM |
| Number of blades | 8 |
| Voltage | 220–240 V AC |
| Dimensions (L×W×H) | 62 × 48 × 46 inches |
| Approx. weight | 222 kg |
