Built for sugarcane. Engineered for Indian fields.

Field-led engineering

Ratoon & Crop Care RMDMCSD

Ratoon Manager Device

RMDMCSD combines ratoon shaving, V-shaped residue cleaning, off-barring and fertilizer placement. An optional multi-crop seed drill can be used during the same field operation.

Enquire about this machine View specifications

Ratoon Manager Device, model RMDMCSD

BhooSarthi

0135 HP

028 mm boron blades

0350 kg fertilizer tank

04Optional seed drill

How it is built

Features that support the operation.

Heavy-duty PTO-driven gearbox
Boron steel ratoon shaving blades
V-shaped automatic residue cleaners
Adjustable fertilizer and seed tines
Optional multi-crop seed drill
Hydraulic and front-wheel depth control

In the field

Practical advantages.

01
Combines several ratoon management operations
02
Even shaving encourages fresh tillering
03
Places fertilizer close to the root zone
04
Optional intercropping without an extra field pass

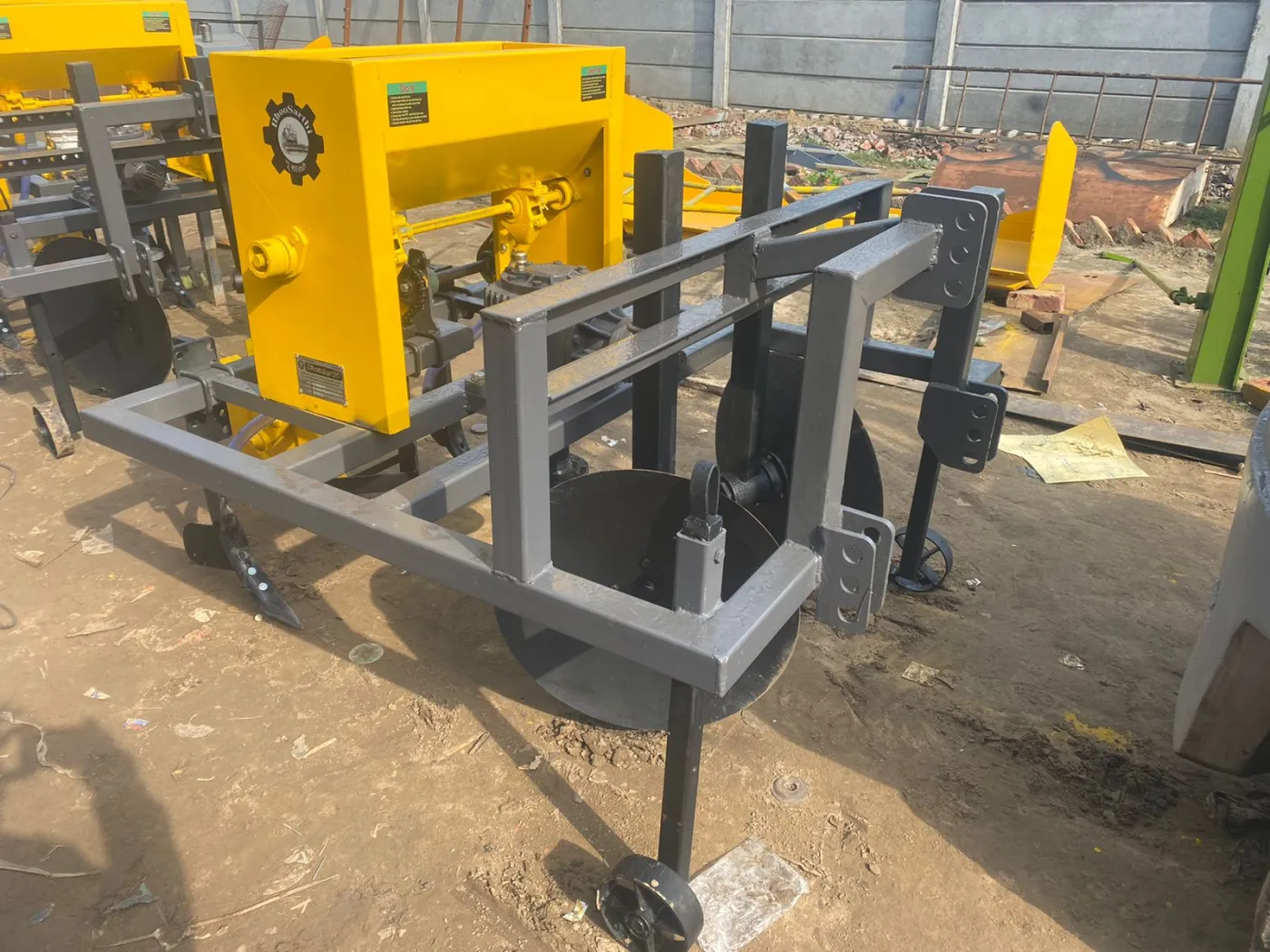

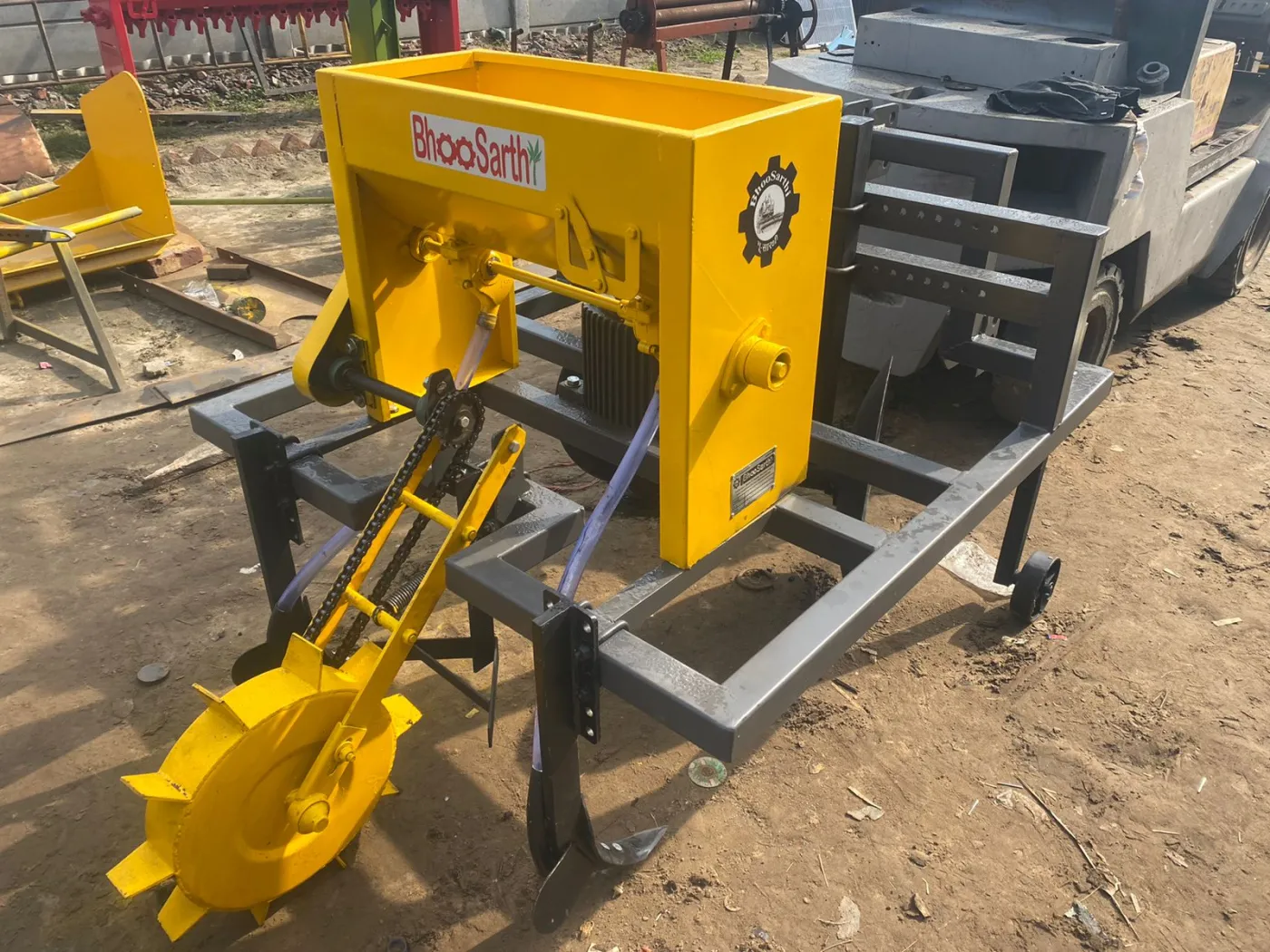

Product views

See the machine from every side.

Images are from BhooSarthi’s supplied product and field library.

Technical data

RMDMCSD specifications

Specifications are based on the product information supplied for this model. Configuration may vary with crop and field requirements.

Discuss your configuration

Technical specifications for Ratoon Manager Device
Required power	35 HP
Blade	8 mm boron steel
Fertilizer tank	50 kg
Seed tank	10 kg
Shaving bed spacing	10–28 inches
Seed row spacing	9–11 inches, adjustable
Machine drive	540 PTO RPM + ground wheel
Dimensions (L×W×H)	2362 × 1727 × 1575 mm
Approx. weight	445 kg
