Built for sugarcane. Engineered for Indian fields.

Field-led engineering

Sugarcane Planters TSPBS01

Trench Sugarcane Planter

The BhooSarthi TSPBS01 mechanises the core operations of trench sugarcane planting in a single tractor pass—from furrow opening and fertilizer placement to sett cutting, treatment, placement and soil covering.

Enquire about this machine View specifications

Trench Sugarcane Planter, model TSPBS01

BhooSarthi

01Single-row paired planting

0250 HP & above

035–6 acres/day

04Hydraulic + PTO

How it is built

Features that support the operation.

PTO-driven cutting and fertilizer placement units
Two-way V-shaped mouldboard furrow opener
Automatic sett cutting with a heavy-duty gearbox
Seed and soil treatment at the cutting and placement points
Adjustable placement, depth control, closing and levelling
Imported roller rubber grips designed to protect seed buds

In the field

Practical advantages.

01
Combines multiple planting operations into one field pass
02
Designed to reduce labour requirement by up to 70% compared with conventional planting
03
Places fertilizer and setts in the row at the required rate
04
Minimises bud damage while supporting consistent placement

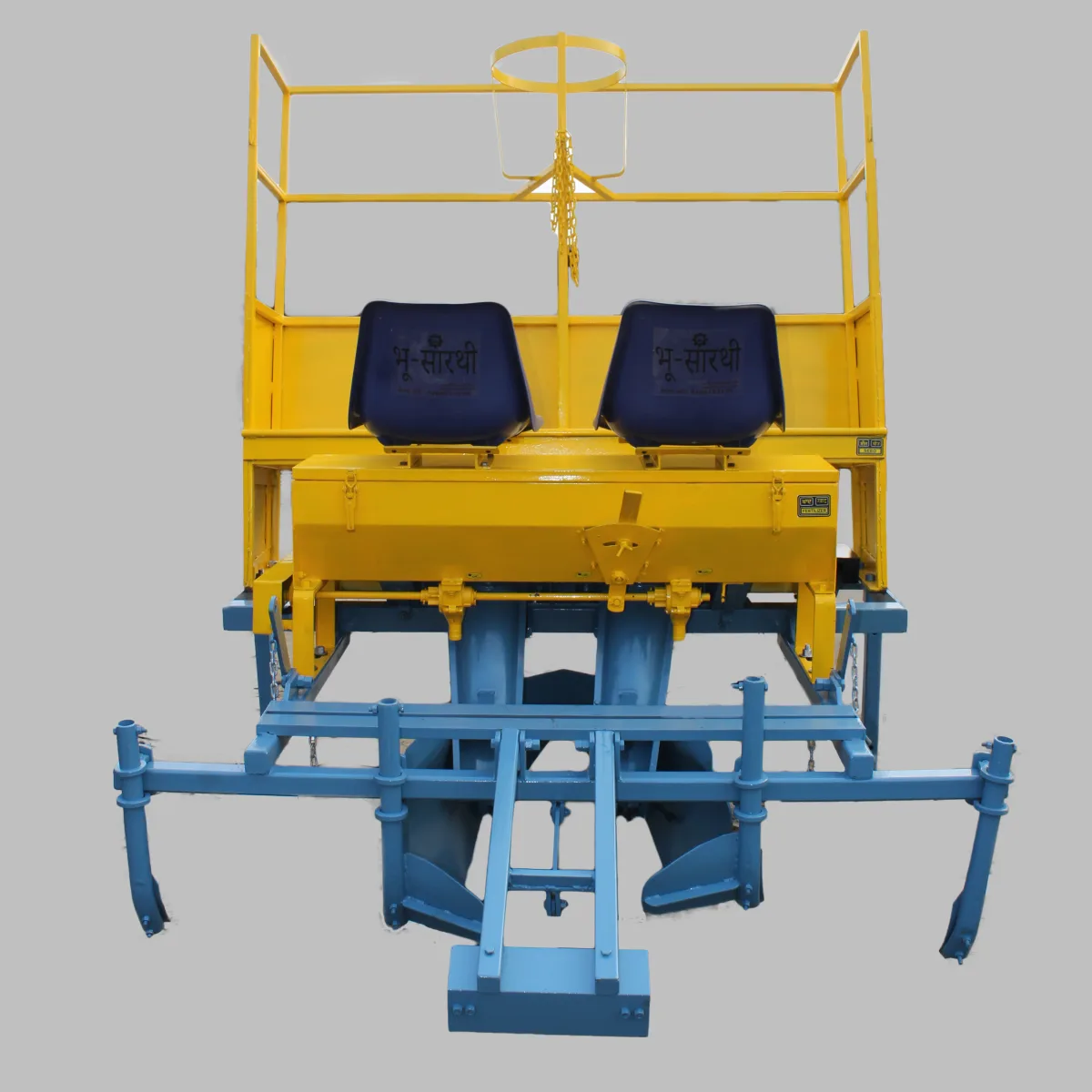

Product views

See the machine from every side.

Images are from BhooSarthi’s supplied product and field library.

Technical data

TSPBS01 specifications

Specifications are based on the product information supplied for this model. Configuration may vary with crop and field requirements.

Discuss your configuration

Technical specifications for Trench Sugarcane Planter
Planting rows	Single row (paired planting)
Required power	50 HP & above
Field capacity	5–6 acres/day
PTO speed	540–1000 RPM
Seed tank	300–400 kg
Fertilizer tank	50 kg
Treatment tanks	50 L insecticide + 200 L fungicide
Machine drive	Hydraulic & PTO
Depth control	Hydraulic
Dimensions (L×W×H)	2133 × 2011 × 2316 mm
Approx. weight	672 kg
