Sugarcane Planters
TSRPBS01
Rafale Single Row Planter
The Rafale is a compact one-row automatic sugarcane cutter planter that opens the furrow, meters fertilizer, cuts and treats setts, places them and closes the row in one operation.
BhooSarthi
How it is built
Features that support the operation.
- Single deep row planting from 10 to 13 inches
- Automatic 2–3 eye sett cutting and placement
- Mechanical treatment pump
- Heavy-duty gearbox with protected feed rollers
- Hydraulic depth control and tractor mounting
- One operator seat
In the field
Practical advantages.
- 01
Compact solution for smaller tractors and fields
- 02
One-pass fertilizer, treatment and planting
- 03
Lower labour dependence than manual planting
- 04
Easy transport using tractor hydraulics

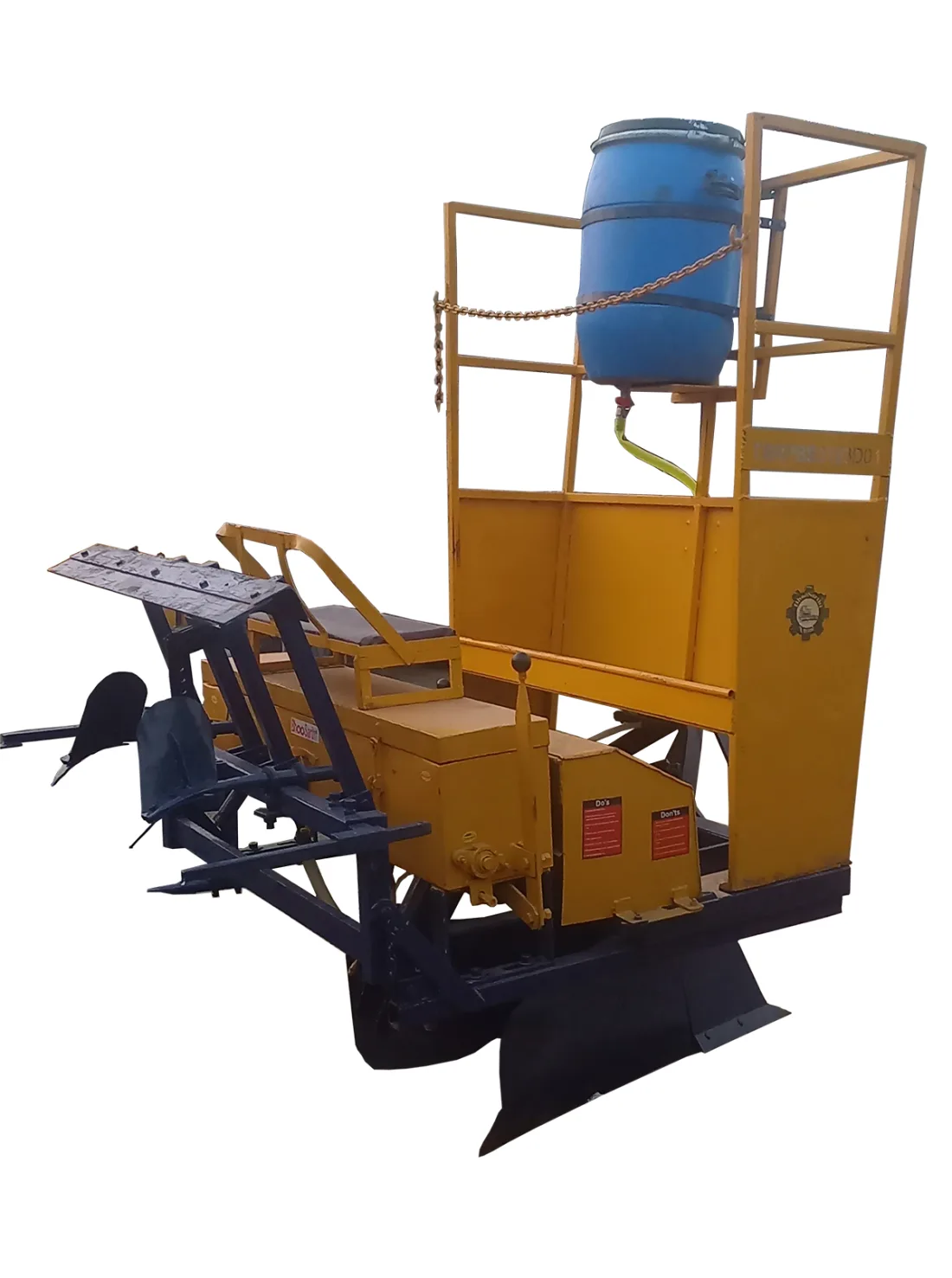

Product views
See the machine from every side.
Images are from BhooSarthi’s supplied product and field library.
Technical data
TSRPBS01 specifications
Specifications are based on the product information supplied for this model. Configuration may vary with crop and field requirements.
Discuss your configuration| Planting rows | 1 |
|---|---|
| Furrow depth | 10–13 inches |
| Required power | 35 HP & above |
| Field capacity | 3–4 acres/day |
| Seed tank | 200–300 kg |
| Fertilizer tank | 50 kg |
| PTO speed | 540–1000 RPM |
| Dimensions (L×W×H) | 55 × 48 × 87 inches |
| Approx. weight | 495 kg |
